Fixtures
MAX-F-1.0/PC
Fixture for inspecting 1mm ferrules and connectors with PC end face, comes with a key adapter for a 7.5 mm ferrule length pin termini or for a 6.35 mm ferrule length pin termini upon customer's choice.
MAX-F-1.6/PC
Ferrule fixture for measuring 1.6 mm ferrules with PC and flat polished end face (pin terminus and socket terminus), M29504/4 (measured with a key adapter) and M29504/5 style (measured without a key adapter).
MAX-F-1.25/APC-Ar
1.25/APC connector fixture for measuring 1.25 mm ARINC 801 connectors with APC end face (with 30° key).
MAX-F-1.25/APC-CS-O
1.25 mm APC connector fixture for measuring CS® connectors (where polishing angles are directed in opposite directions).
MAX-F-1.25/APC-CS-S
1.25 mm APC connector fixture for measuring CS® connectors (where polishing angles are directed in the same direction - initial CS design).
MAX-F-1.25/APC-LC-D
LC/APC connector fixture for measuring LC Duplex connectors with APC end face.
MAX-F-1.25/APC-MU-D
MU/APC connector fixture for measuring MU Duplex connectors with APC end face.
MAX-F-1.25/APC-VSFF
1.25 mm APC connector fixture for measuring SN® (BTW, BTW-1, BTW-2) and MDC connectors (Junior and Senior) after polishing or final ones.
MAX-F-1.25/PC base fixture and MAX-F-1.25/APC base fixture with various key adapters
1.25/PC and 1.25/APC base fixtures with key adapters for measuring LC and MU ferrules and connectors with PC, UPC and APC end face.
MAX-F-1.25/PC-CS
1.25 mm PC connector fixture for measuring CS® connectors
MAX-F-1.25/PC-LC-D
LC/PC connector fixture for measuring LC Duplex connectors with PC end face.
MAX-F-1.25/PC-MU-D
MU/PC connector fixture for measuring MU Duplex connectors with PC end face.
MAX-F-1.25/PC-S
Fixture for 1.25/PC ferrule with 3.5mm length, suitable for KANI and MU-simplified connectors, PC type.
MAX-F-1.25/PC-VSFF
1.25 mm PC connector fixture for measuring SN® (BTW, BTW-1, BTW-2) and MDC connectors (Junior and Senior).
MAX-F-2.0/PC
2.0/PC connector fixture for measuring 2.0 mm connectors (M29504/14) with PC end face.
MAX-F-2.5/APC-E2000
E2000/APC connector fixture for measuring E2000™ connectors with APC end face.
MAX-F-2.5/APC-OPTITAP
Fixture for inspection of OptiTap and SLIM connectors, APC type.
MAX-F-2.5/PC base fixture and MAX-F-2.5/APC base fixture with various key adapters
2.5/PC and 2.5/APC base fixtures with key adapters for measuring SC, FC-R, FC-N, ST ferrules and connectors with PC, UPC and APC end face.
MAX-F-2.5/PC-E2000
E2000/PC connector fixture for measuring E2000™ connectors with PC (UPC) end face.
MAX-F-BFV
Base fixture for measuring straightly cleaved bare fiber of both mechanically and laser cleaved types. To be coupled with a Vytran clamp.
MAX-F-MMC/APC-F
Fixture for inspecting 12/24-fiber MMC/APC patch cords, female connection (no pins).
MAX-F-MMC/APC-F16
Fixture for inspecting 16-fiber MMC/APC patch cords, female connection (no pins).
MAX-F-MT/APC-COMP-SS
Fixture for inspection of MTCOMPACT® Slim & Short ferrule, with APC polishing.
MAX-F-MT/APC
MT/APC ferrule fixture for measuring MT ferrules with APC end face (12 to 72 fibers).
MAX-F-MT/PC-COMP-SS
Fixture for inspection of MTCOMPACT Slim & Short ferrule, with PC polishing.
MAX-F-MT/PC
MT/PC ferrule fixture for measuring ferrules with PC end face (12 to 72 fibers).
MAX-F-MT16/APC
Fixture for measuring 16-fiber and 32-fiber MT ferrules with APC end face.
MAX-F-MT16/PC
Fixture for measuring 16-fiber and 32-fiber MT ferrules with PC end face.
MAX-F-MTP/MPO-APC-F
MTP®/MPO APC female connector fixture for measuring MTP®/MPO female connectors with APC end face (12 to 72 fibers).
MAX-F-MTP/MPO-APC-M
MTP®/MPO APC male connector fixture for measuring MTP®/MPO male connectors with APC end face (12 to 72 fibers).
MAX-F-MTP/MPO-PC-F
MTP®/MPO PC female connector fixture for measuring MTP®/MPO female connectors with PC end face (12 to 72 fibers).
MAX-F-MTP/MPO-PC-M
MTP®/MPO PC male connector fixture for measuring MTP®/MPO male connectors with PC end face (12 to 72 fibers).
MAX-F-MTP/MPO16-APC-F
Fixture for MPO16/32 APC female connectors.
MAX-F-MTP/MPO16-PC-F
Fixture for MPO16/32 PC female connectors.
MAX-F-MTRJ/APC
MTRJ/APC ferrule fixture for measuring MT-RJ ferrules with APC end face.
MAX-F-MTRJ/PC
MTRJ/PC ferrule fixture for measuring MT-RJ ferrules with PC end face.
MAX-F-RF/PC
Base fixture for measuring straightly cleaved ribbon of both mechanically and laser cleaved types. Coupled with Sumitomo, Fujikura or other clamps.
MAX-F-SMA-905
3.2/SMA connector fixture for measuring SMA 905 and SMA 906 connectors.
MAX-F-TMT16/APC
Fixture for inspecting 16-fiber TMT/APC ferrules, no pins.
MAX-F-TMT24/APC
Fixture for inspecting 12/24-fiber TMT/APC ferrules, no pins.

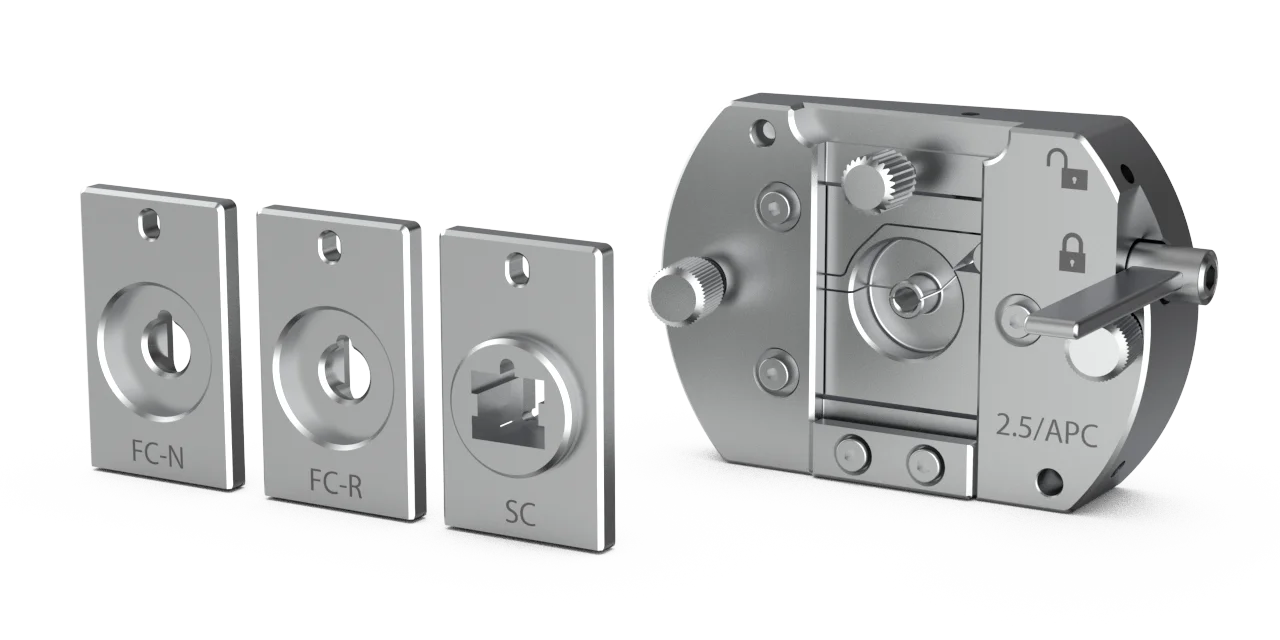

MAX-F2-2.5/APC
2.5/APC base fixture (reverse force design) for measuring SC/APC and FC/APC connectors. Requires key adapters to be purchased for testing connectors: MAX-KA-SC (for SC), MAX-KA-FC-R (for FC with 2.0 mm key), MAX-KA-FC-N (for FC with 2.14 mm key).
MAX-F2-2.5/PC

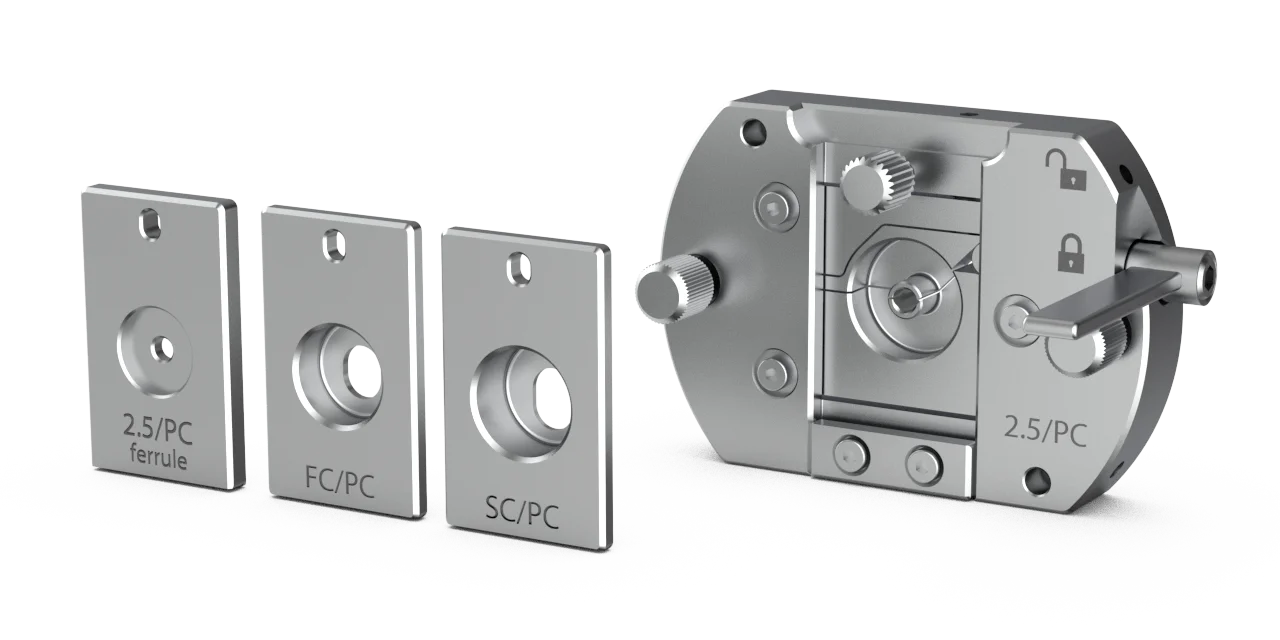

2.5/PC base fixture (reverse force design) for measuring 2.5/PC ferrules, SC, FC and ST connectors with PC/UPC end face. Requires key adapters to be purchased for testing ferrules and connectors: MAX-KA-SC-PC (for SC), MAX-KA-FC-PC (for FC with 2.0 and 2.14 mm keys), MAX-KA-2.5/PC-ferrule (for ST).
MAX-SVF-MMC/APC
Fixture for testing MMC patchcords of APC type, male connection and measuring guide holes angles and parallelism. Can be used for testing MMC patchcords of APC type with female connection if pins are inserted manually. Suitable for 12-72 fiber and 16-fiber MMC. Provided with a perpetual license.
Needs calibration a reference connector (order MAX-REF-SVF-MMC-APC-M).
MAX-SVF-MPO-APC-M
Fixture for inspection of male MTP®/MPO patchcords, APC type, and measuring guide holes angles and parallelism. Suitable for 16-32 fiber and 12-72 fiber MTP®/MPO. Female MTP®/MPO patch cords can be inspected if pins are inserted manually (order AC-MPO-PI pin insertion tool).
Needs calibration withcardWidth: a reference connector (order MAX-REF-SVF-MPO-APC-M).
**To be used with MAX-Quantum, MAX-QM+ interferometer only.
MAX-SVF-MPO-PC-M
Fixture for inspection of male MTP®/MPO patchcords, PC type, and measuring guide holes angles and parallelism. Suitable for 16-32 fiber and 12-72 fiber MTP®/MPO. Female MTP®/MPO patch cords can be inspected if pins are inserted manually (order AC-MPO-PI pin insertion tool).
Needs calibration a reference connector (order MAX-REF-SVF-MPO-PC-M).
**To be used with MAX-Quantum, MAX-QM+ interferometer only.
MAX-SVF-MT-APC
Fixture for inspecting geometry of MT/APC ferrules and measuring guide hole angles and parallelism. Suitable for 16-32 fiber and 12-72 fiber MT ferrules.
Needs calibration a reference connector (order MAX-REF-SVF-MT/APC).
**To be used with MAX-Quantum, MAX-QM+ interferometer only.
MAX-SVF-MT-PC
Fixture for inspecting geometry of MT/PC ferrules and measuring guide hole angles and parallelism. Suitable for 16-32 fiber and 12-72 fiber MT ferrules.
Needs calibration a reference connector (order MAX-REF-SVF-MT/PC)
**To be used with MAX-Quantum, MAX-QM+ interferometer only.
MAX-SVF-SN/APC
Fixture for inspection of the ferrules and connectors from SN-MT family, with a permanent license. To be coupled with specific handlers: MAX-H-SN-MT-C2, MAX-H-SN-MT-CON.
MAX-TP-MT
Fixture for measuring angles and offset of fiber holes, angles and parallelism of guide holes of bare MT12 ferrules (incl. pre-angled ones).
**To be used with MAX-Quantum only.
Reference connectors for fixture verification
MMC-APC-F reference connector for verification and calibration of MAX-F-MMC-APC-F fixture
MMC-APC-F16 reference connector for verification and calibration of MAX-F-MMC-APC-F16 fixture
MMC-APC-M reference connector for verification and calibration of MAX-SVF-MMC/APC fixture
TMT16/APC reference connector for verification and calibration of MAX-F-TMT16/APC fixture
TMT24/APC reference connector for verification and calibration of MAX-F-TMT124/APC fixture
Preparation of a reference connector out of customer's samples
LC/APC reference connector for verification of 1.25/APC-LC SMX and MAX series fixtures.
SC/APC reference connector for verification of 2.5/APC-SC SMX and MAX series fixtures.
FC/APC reference connector (R-type) for verification of 2.5/APC-FC-R SMX and MAX series fixtures.
FC/APC reference connector (N-type) for verification of 2.5/APC-FC-N SMX and MAX series fixtures.
1.25/PC connector for verification/calibration of 1.25/PC MAX and SMX series fixtures.
2.5/PC ferrule for verification/calibration of 2.5/PC MAX series fixtures. To be used with MAX-KA-2.5/PC-ferrule key adapter.
SC/PC reference connector for calibration of MAX-F-2.5/PC fixtures. To be used with MAX-KA-SC key adapter.
1.6/PC connector for calibration/verification of 1.6/PC MAX series fixtures
2.0/PC connector for calibration/verification of 2.0/PC MAX series fixtures
MT/APC reference ferrule for verification of MT/APC SMX and MAX series fixtures.
MT/PC reference ferrule for verification of MT/PC SMX and MAX series fixtures.
MTP/APC refence connector (female type) for verification of MTP/MPO-APC-F SMX and MAX series fixtures.
MTP/APC refence connector (male type) for verification of MTP/MPO-APC-M SMX and MAX series fixtures.
MTP/PC refence connector (female type) for verification of MTP/MPO-PC-F SMX and MAX series fixtures.
MTP/PC refence connector (male type) for verification of MTP/MPO-PC-M SMX and MAX series fixtures.
MTRJ/PC reference ferrule for verification of MTRJ/PC SMX and MAX series fixtures.
MT16/PC reference ferrule for verification of MAX-F-MT16/PC fixtures.
MT16/APC reference ferrule for verification of MAX-F-MT16/APC fixtures.
MPO-PC-M reference connector for verification and calibration of MAX-SVF-MPO-PC-M fixture.
MPO-APC-M reference connector for verification and calibration of MAX-SVF-MPO-APC-M fixture.
MT/PC reference ferrule for verification and calibration of MAX-SVF-MT-PC fixture.
MT/APC reference ferrule for verification and calibration of MAX-SVF-MT-APC fixture.
Other Accessories
AC-MPO-PI

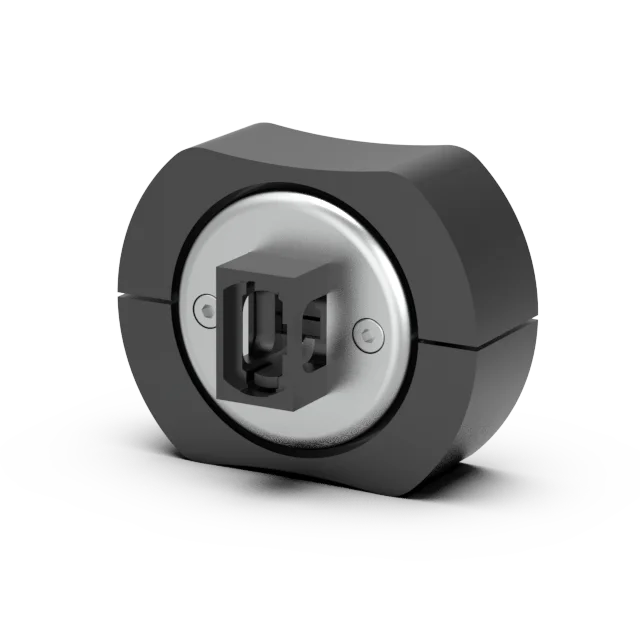

Pin insertion tool to inspect female MPO (16/32) patch cords with MAX-SVF-MPO-PC-M and MAX-SVF-MPO-APC-M fixtures; to be used with AC-MPO-PINS pins.

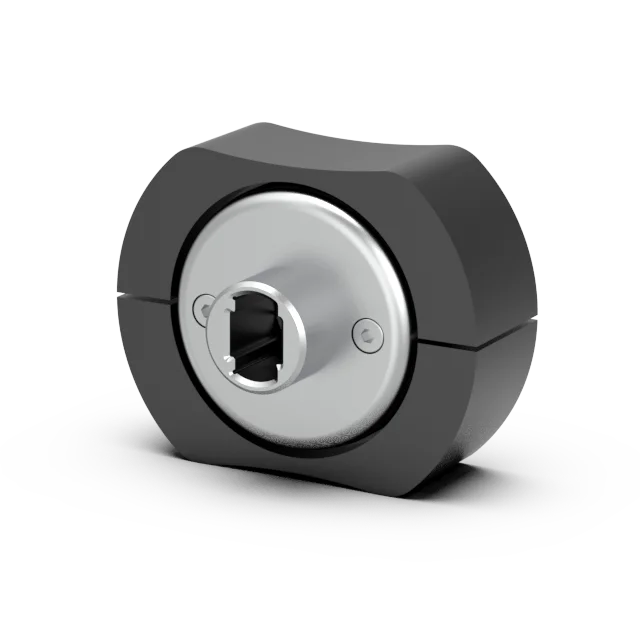

AC-MPO16-PI
Pin insertion tool to inspect female MPO (16/32) patch cords with MAX-SVF-MPO-PC-M and MAX-SVF-MPO-APC-M fixtures; to be used with AC-MPO16-PINS pins

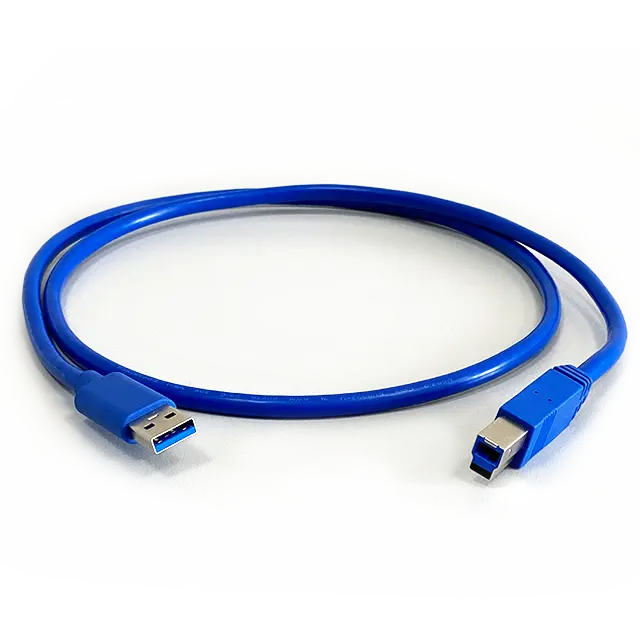

MAX-CABLE
USB 3.0 cable for Sumix interferometers (A-Male to B-Male).

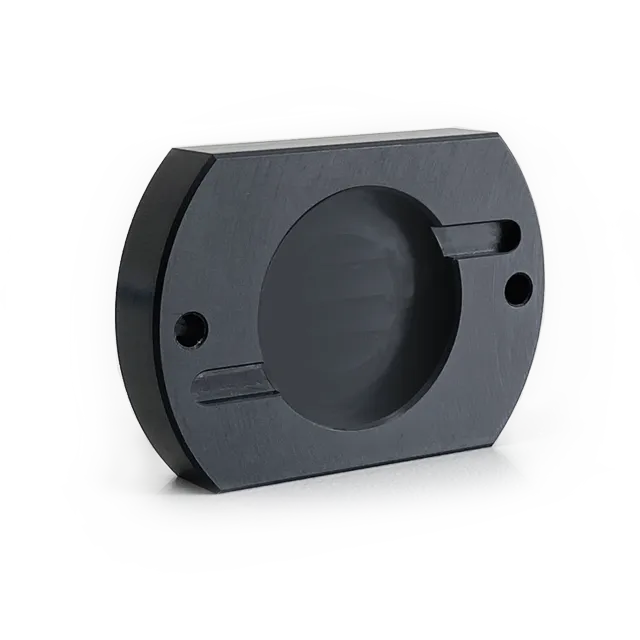

MAX-CAP
Dust protection cap for MAX-Quantum, WIZ and MAX+ interferometers.
MAX-OFS-SCREW
Screw for fixing MAX-OFS and protection cap to MAX series interferometer.
MAX-OFS

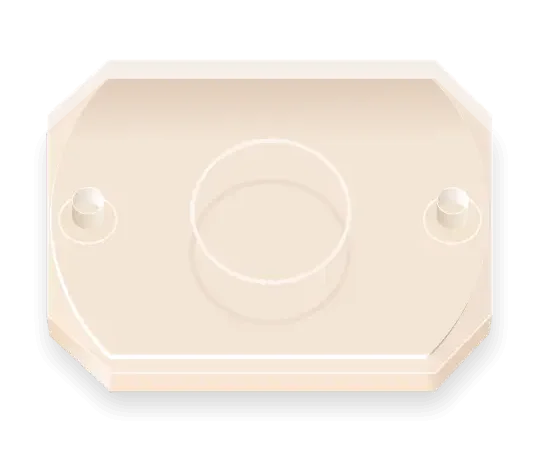

Optical flat standard for Sumix interferometers verification and calibration of device alignment.

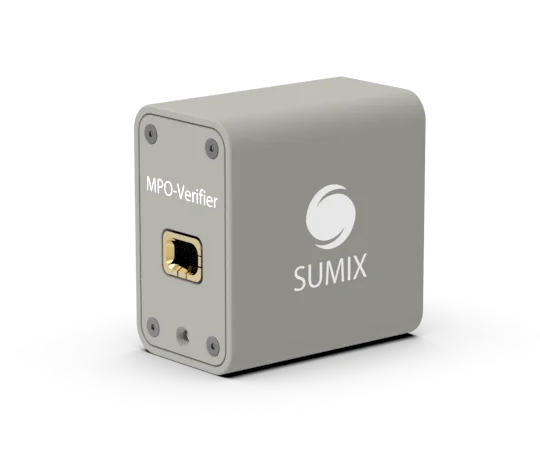

MPO-Verifier
Illumination module for polarity, continuity and fiber sequence verification of MPO patch cords to be used with MAX-Quantum and MAX-QM+
Power supply

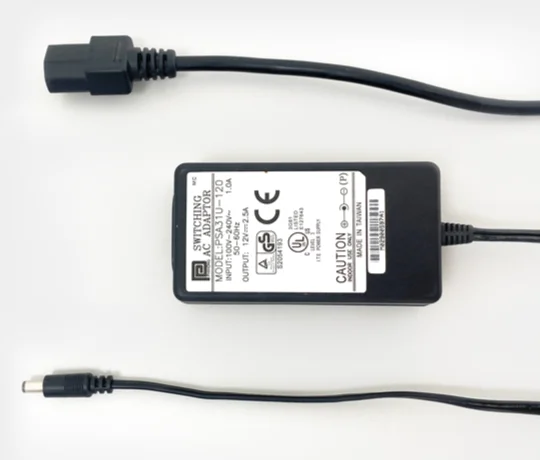

AC adapter for Sumix interferometers. Options - US plug or EU plug.

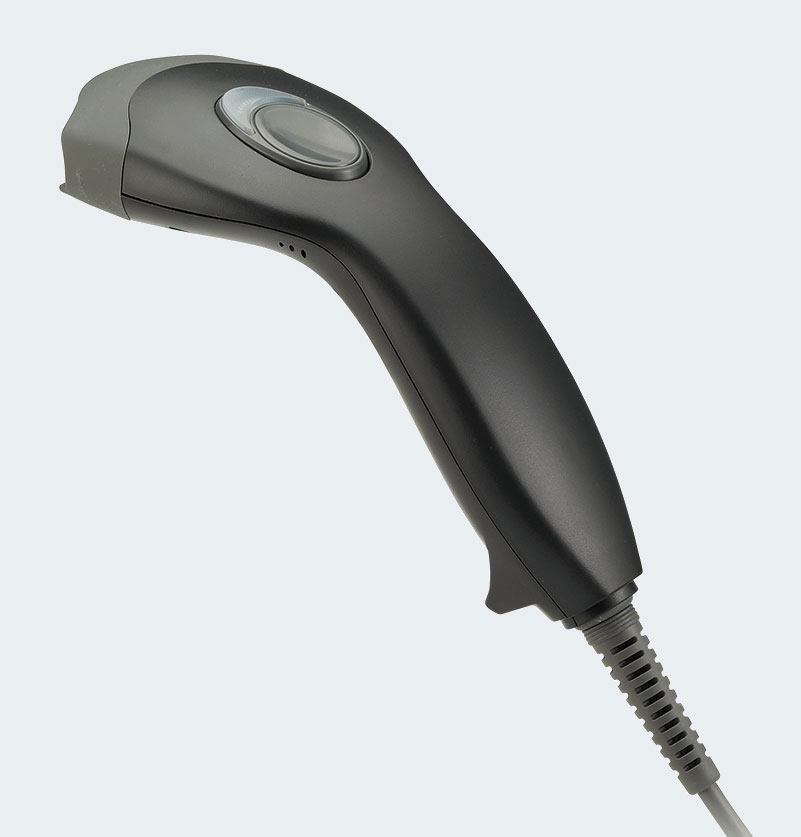

SMX-BCR
Handheld barcode reader for entering connector ID numbers to MaxInspect software.
SMX-FSW
USB foot switch for triggering measurement in MaxInspect� software.

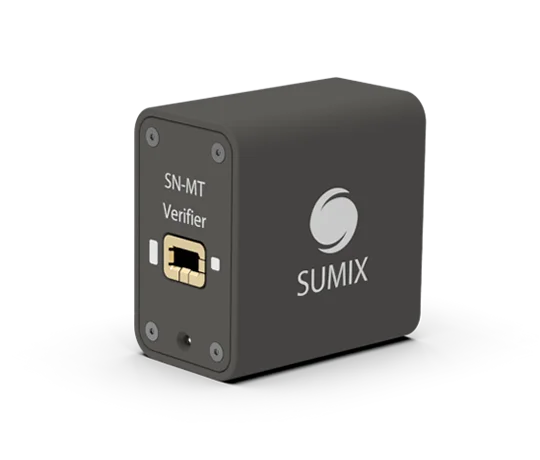

SN-MT-Verifier
Illumination module for polarity, continuity and fiber sequence verification of of SN-MT patch cords to be used with MAX-Quantum and MAX-QM+
